Do you quote component pieces? How about linear parts? After uploading a file and completing geometry cleanup, you can adjust individual properties of parts to quickly and accurately execute your quote.
This is the third step of uploading a CAD file in SecturaFAB. Start with Upload and Edit DXF Files then learn more about Geometry Cleanup in our resource center.
Let's explore adjusting properties.

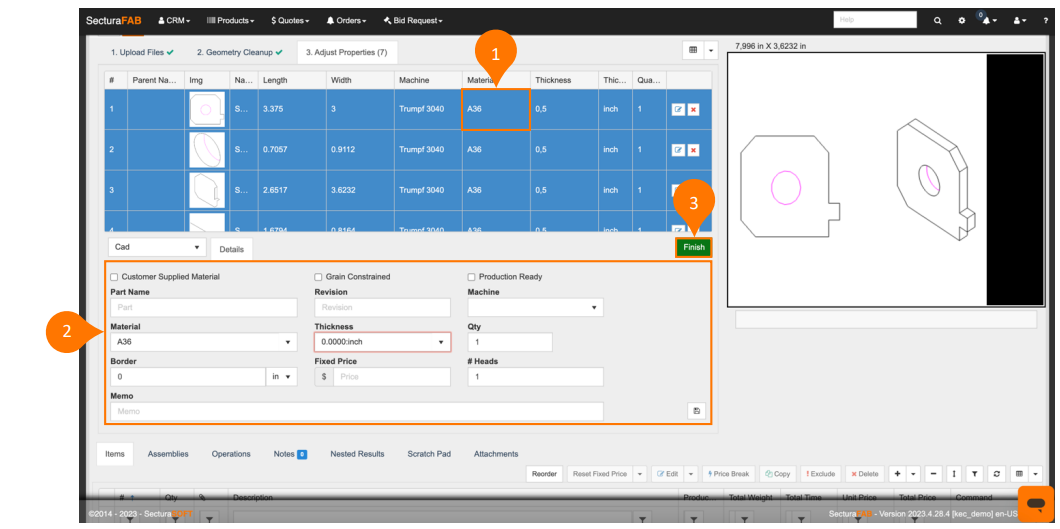

You may edit single line items directly in the table (for example, the material, as shown). To edit properties for all line items, adjust the details fields and select the save icon. When you’re done, choose “Finish.”

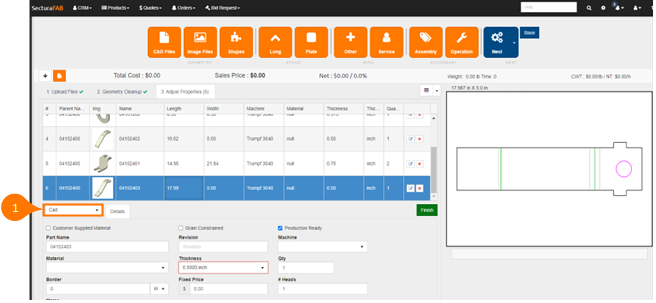

Use the dropdown to change file parts to the appropriate type. These options include:
Assembly: The main root/parent part number
Cad: Any parts needing primary operations such as laser cutting or press brakes
Cad 3D: Any parts needing 3D milling, punching or tapping
Component: Parts to be ordered/purchased parts sold by your company's vendors
Linear: Parts such as tubes or structural items
Select "Finish." Find out more about completing a quote in our resource center.
